xsTECH Pro Vacuum Workholding Kit
$215.00
PN:
54209
Shipping Weight:
4 lbs.
Stock:
In stock
The xsTECH Pro Vacuum Workholding Kit is an accessory for the xsTECH PRO desktop CNC system, designed to provide fast, secure, and non-marring workholding for flat materials. This kit is ideal for technical education, prototyping, and advanced machining projects where quick part changeover and gentle clamping are required.
Key Features
- Aluminum Vacuum Chuck: Precision-machined 150mm x 150mm vacuum chuck provides a flat, stable surface for holding sheet materials and delicate parts without mechanical clamps.
- Venturi Valve System: Uses shop air (via included Venturi valve) to generate vacuum—no dedicated vacuum pump required.
- Quick Setup: Includes all necessary fittings, tubing, and gaskets for easy integration with the xsTECH PRO and standard air compressors.
- Non-Marring Hold: Ideal for plastics, woods, PCBs, and other materials where clamp marks are undesirable.
Benefits
- Fast Part Changeover: Quickly load and unload parts for higher productivity.
- Secure, Even Clamping: Holds parts flat and steady during machining.
- Protects Delicate Materials: No risk of clamp-induced damage or distortion.
- Easy to Install: Designed for plug-and-play use with the xsTECH PRO and standard shop air.
Specifications
- Air Consumption: 1.55 CFM
- Air Pressure Required: 90 PSI
- Maximum Vacuum: - 13.3 PSI
- Suction Flow Rate: 0.95 CFM

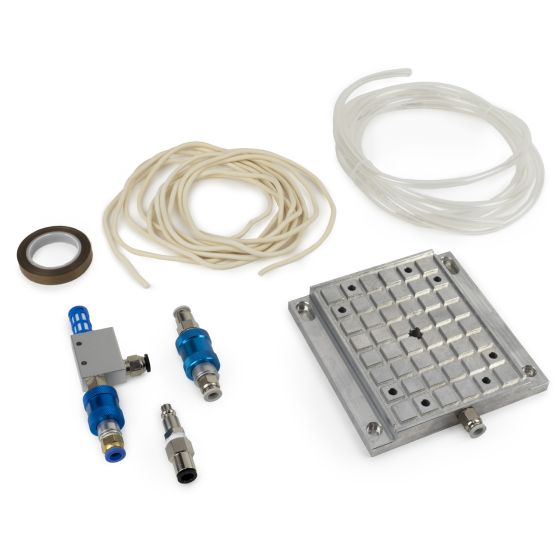

What's in the Box?
| QTY. | DESCRIPTION |
|---|---|
| 1 | 150 mm x 150 mm Aluminum Vacuum Chuck (customized) |
| 1 | Venturi Valve |
| 1 | Vacuum One-Way Valve |
| 3 m | Vacuum Gasket |
| 3 m | 8 mm OD Vacuum Tubing |
| 1 | Quick Connect for Air Compressor |
| 1 | 8 mm PTC Fitting (Quick Connector Adapter) |
| 1 | PTFE Tape |
| 4 | M6 x 10 mm SHCS |
| 4 | 6 mm T-nuts |
| 8 | Fixture Pins, 6 mm diameter x 20 mm |
